MoToR Magazine - December, 1939


  MoToR Rides the Snow Cruiser


First Hand Impressions of How World's Largest Automobile Is Operated

By HAROLD F. BLANCHARD

Technical Editor of MoToR

CAN YOU IMAGINE driving all over the Antarctic in a motor car? Not only to the Pole itself, which is 750 miles south from the Bay of Whales, but to everywhere else of interest except where high mountains get in the way or where there are areas with deep crevasses too broad to cross. Yet that is exactly what the Snow Cruiser was built to do.

There is gold and platinum in some of the mountains, stone for building houses and coal for heat. All that is lacking is transportation which may some day be provided by a fleet of snow cruisers to take supplies to the mines and bring back precious metals. Such is the dream of a certain professor.

FIRST SNOW CRUISER ... This imaginary vehicle was pictured in a book called "Across the Frozen Sea," or Frank Reade Jr.'s Electric Snow Cutter," published in 1891. Its paddle wheel with toothed tips was operated by an electric motor supplied by storage batteries.

The immediate purpose of the Snow Cruiser, however, as part of the U. S. Antarctic Service under Admiral Byrd's command, is to speed up exploration work and scientific investigation as well as to claim the continent as a United States possession by maintaining colonies there for three years as required by international agreement. Assisted by a five-passenger airplane, it is believed that the Snow Cruiser will add as much to the knowledge of the South Polar regions in two or three months as all previous expeditions combined. This plane, along with others, is expected to map most of the South Polar Continent by means of aerial cameras. The Snow Cruiser, world's newest and largest automobile, has almost nothing in common with conventional cars except that it runs on four pneumatic tires, but even this comparison is not exact because the tires are so large and soft that a spring suspension is unnecessary. Unlike an ordinary car, it has two engines instead of one, four-wheel drive, four-wheel steering by two levers instead of a steering wheel, two accelerator pedals, two brake pedals, a builtin hydraulic jack on each wheel, enough Diesel fuel for a 5000-mile run (2500 gallons), 1000 gallons of airplane gasoline, bunks for four men and food for a year.

WHEELS are driven individually by 75 hp electric motors in their hubs. Dr. Thomas C. Poulter, designer of the Snow Cruiser, is shown directly behind the motor.

Two 150 hp six-cylinder Diesel engines drive electric generators which supply current to a 75 hp motor in the hub of each wheel. Wheels are steered by oil at 2000 pounds pressure under the guidance of two levers located at either side of the driver who sits in an individual chair in the center of the control room. The right lever steers the front wheels and the left one the rear.

WHEEL BEARINGS, made by Timken, have an outside diameter of 32 inches.

Hydraulic band brakes, actuated by the same oil pressure, are controlled by a pair of treadle pedals operated by the driver's left foot, one pedal for front brakes and the other for rear. Similarly, the Diesel engines are controlled by two treadles depressed by the right foot. Normally one Diesel engine drives the front wheels and the other the rear, although either engine may be used to drive all four wheels. Toward the rear of the driver's seat are two long levers which are electrical controllers for the front and rear wheel motors. They connect the two motors in parallel for starting or climbing a grade and in series for running. They also enable the wheel motors to be used as brakes when descending long grades since the hydraulic brakes are intended for occasional or emergency use, brake lining area being insufficient for continued retardation of this 75,000-pound vehicle.

The Diesel engines are started by operating two switches underneath the flat instrument board. The two controller levers are then moved from neutral to connect the pair of front and rear motors in parallel, the engines are speeded up and the Cruiser glides away after the driver has given two warning toots on a dual horn to tell the crew to get aboard and to draw up the boarding ladder which hangs down to the road from the door in the engine room.

ADMIRAL BYRD is shown in the driver's seat grasping the two steering levers. Right lever is for front wheels and left for rear. The four conical buttons directly in front of him are lined up at the center, indicating that all four wheels are pointed straight ahead. The 10 valves at the right and another 10 at the left are for raising and lowering the wheels. Lever to left of cushion operates a controller switch for rear wheel motors. There is a similar lever at right for front motors.

In normal operation the driver sits with one hand on each steering lever and his right foot on the two Diesel pedals. The left lever is ordinarily kept in neutral position with rear wheels pointed parallel fore and aft while steering is done by the right lever controlling the front wheels. The motion of the driver's arm in steering is spasmodic. When the car is on its course he holds the lever in neutral, moving it now and then, either back or ahead as the Cruiser needs correcting toward right or left. The motion is much like that of a steering wheel rim on a car which has a little play in the steering mechanism.

KINGPIN, about 10 inches in diameter, is shown just to right of front wheel. Note that both wheels are pointed to right to guide vehicle into the parking area.

Each wheel, including its motor, is mounted on a tall kingpin which is nearly a foot in diameter. As shown in the plan view the wheel position is maintained by two telescopic struts, forming a V, which are hydraulically operated by 2000 pounds oil pressure controlled by the steering lever. In other words, to swing a wheel, the steering lever opens valves which apply oil pressure to one strut piston and reduce oil pressure on the other. With steering lever in neutral position, the valves to both pistons are closed and the wheel is securely held in the position it had when the lever was last moved to neutral. Pistons on right and left wheels are interconnected so that ordinarily the two wheels move in unison but they may be turned separately when desired, as when negotiating a right-angled street intersection. Such a sharp turn is taken at one mph or less. At this low speed, the pressure supplied by the control oil pump is insufficient to swing both front wheels at once. Hence they are turned separately, by operating valves underneath the instrument board in conjunction with the steering lever. As shown in one of the photographs the wheels are readily brought back to parallel position with the aid of an instrument directly in front of the driver.

HELPS ITSELF OUT ... Snow Cruiser came to rest in bed of stream near Lima, Ohio, as shown at left. Hydraulic jacks built into kingpin assemblies lifted body (right) permitting it to be to allow vehicle to be blocked up with timbers. Then wheels were lifted by jacks and timbers placed under wheels. By this method a plank road was constructed to allow vehicle to be backed onto highway.

How the Cruiser Is Steered

During the writer's ride from Schenectady, N. Y., to Pittsfield, Mass., steering was done entirely by the front wheels except when we stopped at a roadside restaurant for a late lunch. There, all four wheels were swung to the right to move the Cruiser off the road into a convenient parking area.

Throughout the trip, the driver, who was Dr. Thomas C. Poulter, designer of the Snow Cruiser, always kept his left hand on the rear wheel steering lever ready for any emergency which might require swinging the rear to one side or the other.

Maximum swing of wheels is 25 degrees which enables the outside wheels to turn on a radius of about 37 feet when the front wheels are deflected all the way in one direction and the rear wheels are oppositely pointed. With a wheelbase of 20 feet, this 55-foot long ship overhangs the front wheels 18 feet and the rear wheels 17 feet. Its tread is 14 feet, body width 15 feet and overall width from hub to hub is 19 feet 8 inches. Therefore, even with a comparatively small turning radius it requires considerable space for maneuvering. Overall height is 15 feet, a dimension to be considered in selecting bridges.

Maximum speed of the Cruiser is undoubtedly in excess of 30 mph but whether this rate will ever be attained over Antarctic snows is a question. Certainly it is too fast for concrete roads because of the pitching of this springless vehicle on its huge tires which incidentally are 10 feet in diameter, 33.5 inches in section and are mounted on 66-inch rims.

These tires, inflated to only 15 pounds per square inch, provided a comfortable spring suspension except, of course, there is no way to attach shock absorbers to control tire action. Therefore at a speed of only 15 mph it was not unusual for the extremities of the vehicle to bob up and down a few inches when a stretch of wavy concrete was encountered, and once, when traveling nearly 30 mph, a wavy surface caused a motion of at least a foot.

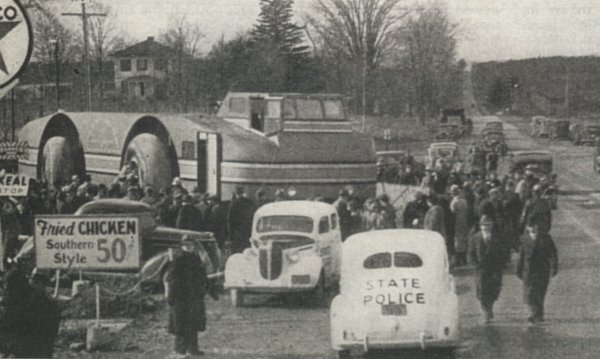

TYPICAL CROWD at a country filling station near Pavilion, N. Y., where the Cruiser was stopped for repairs on the right front brake.

Speed during the 60-mile trip from Schenectady to Pittsfield varied considerably. On the level it ranged from 15 to 25 mph or more depending on width of road and smoothness. Being nearly 20 feet wide, the Cruiser so fully occupied modern two-lane concrete roads that sometimes speed had to be reduced on them. On one such road, a bridge was crossed where the clearance at either side was less than six inches. It was taken at a snail's pace with four men on the top of the cruiser each watching the clearance of one hub. Back in Ohio a bridge was found which was exactly 20 feet wide which left a total clearance of four inches. It took three hours to cross it.

Driving out of Schenectady, nearly an hour was consumed on a street which, with cars parked along either curb, left about a foot to spare on either side. However, outside of an occasional street which was too narrow for comfort, there was no difficulty with parked cars or with traffic. In New York State, for example, a half dozen police cars running two abreast preceded the cruiser. Farther ahead were other police cars and/or motorcycles which ordered all approaching vehicles to pull onto the road shoulders and stop. Vehicles following from behind were not allowed to pass. Thus the Cruiser had the road entirely to itself. Considering its low average speed this was tough on the cars following but there seemed to be no other solution.

Speed upgrade was perforce reduced as with all other motor vehicles. Furthermore, the weather was entirely too "hot" to permit the engines on this Polar machine to be run at full power without overheating. Atmospheric temperature was about 40 above zero whereas normal Summer temperature in the Antarctic is 10 below and 80 or more below in Winter. At 40 degrees above, with all doors and windows open, the engine room reached a temperature of 150 degrees on long hills, which was entirely too hot to permit effective cooling of the radiators which are located directly ahead of the engines and therefore take their air from the engine room instead of from outside. It was so hot that the handles on the short ladder leading up into the control room were too warm to grasp for more than a moment. Hence it was necessary to run the engines at less than full power when ascending a steep grade of any length, such as Lebanon Mountain, leading into Pittsfield, which was negotiated at about 5 mph.

Down in the Antarctic with both engines running at full load it is expected that all four windows and perhaps the door also will have to be left open to keep the engine room temperature within reason. In view of the fact that the engines may burn more than 10 gallons of fuel per hour, which is enough to heat several ordinary houses, the heat in the engine room is readily understandable.

Downgrades Taken at Low Speed

Downgrades were also taken at reduced speed merely as a precaution. On descents of 10 per cent or more, the speed was cut to 5 mph.

Stops were frequent. Luncheon took more time than anticipated. There was a halt at the Gurley plant in Troy for a number of scientific instruments. Another stop was necessary when the Massachusetts Police took over the escorting job. There were two stops to replace broken oil lines and another stop or two for inspection. Hence it took from noon to nearly 9 pm to drive the 60 miles from Schenectady to Pittsfield.

The tires were built by Goodyear in the same moulds used for the tires on the Gulf Refining Co.'s Marsh Buggies which are used for exploring Southern swamps for oil. The Snow Cruiser's tires, however, have twelve plies instead of four or six. They have a thin, smooth tread, total thickness of plies and tread being only an inch. Two spares are carried in the rear of the machine.

The tires have smooth treads apparently because nonskid treads are unnecessary for Antarctic conditions, although the cost of cutting non-skid moulds perhaps was also a consideration. Another reason will be mentioned in a moment.

ANTARCTIC HIGHWAY ...The picture, taken on the last Byrd Expedition, shows a typical surface over which the Snow Cruiser will travel to the Pole. Edsel Ford Mountains are seen in the background. From left to right are Dr. Paul A. Siple, Olin D. Stancliff, and Dr. F. A. Wade who will command the Cruiser in March.

The surface over which the Cruiser will travel in the Antarctic is largely, if not entirely, composed of small, hard crystals of ice which resemble sand from a standpoint of motor vehicle traction. Underneath is a layer of ice ranging in thickness from perhaps 50 up to several hundred feet which rests on the Antarctic Ocean for roughly 300 or 400 miles south from the base at Little America but from there on the layers of snow and ice lie upon a rocky continent with ranges of mountains at intervals. Going Southward toward the Pole the surface slopes gently upward to a plateau which has an elevation of 8000 to 11,000 feet. This entire surface, except where broken by mountains, is covered by a fine, sandlike snow.

The Snow Cruiser, with its enormous tires, was built to run successfully on such a surface. Dr. Poulter, its designer, was second in command and chief scientist, on the previous Byrd expedition where several tractors were used with some success. Some were of American manufacture with metal belts and others were French Citroens with metal belts in the rear and two wheels in front with pneumatic tires. The latter design has been used for some years on the Sahara Desert.

The tractors proved the worth of motorized equipment but they lacked living quarters and they were unable to cross crevasses which are to be found in numerous areas. The width of a crevasse may be anything from a narrow slit to a chasm 50 feet or more wide. Its depth varies from a few feet to possibly several hundred. Most of these cracks, however, are less than 15 feet wide and the Snow Cruiser has been designed to cross them. Areas with wider crevasses can be detoured. Some of the crevasses are concealed by snow but are readily detected in good light by a difference in color of the surface.

How Crevasses Will Be Crossed

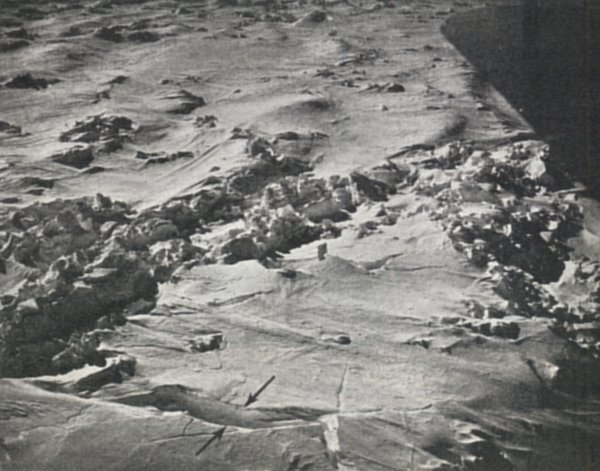

CREVASSES in pressure ice viewed from an airplane. A typical crack which the Cruiser is capable of crossing is indicated by the arrows in the foreground while crevasses in the middle background are too large, therefore this particular territory will have to be detoured.

To cross a crevasse, the front wheels of the Cruiser are driven up to the brink, and lifted up, by operation of the built-in jacks, until the front of the ship rests on the four steel runners which extend the full length of the underbody curving up at the ends as on a toboggan. Next the rear wheels are used to push the Cruiser forward until they reach the brink. Then the front wheels are jacked down until the front is lifted clear of the snow and the rear wheels are jacked up, permitting the front wheels to tow the rest of the vehicle across the chasm on its runners.

The Snow Cruiser was successfully tested in the sand dunes on Lake Michigan. Whereas a large truck quickly sunk to its hubs and had to be towed out by a tractor the Cruiser tires, with a contact area of nearly 9 square feet each, only sunk into the sand an inch or so.

Rubber becomes brittle at a temperature of 72 degrees below zero while temperatures to be encountered may run more than 80 below. No difficulty is expected while the vehicle is in motion because of heat generated by the flexing of the tires-although the heat might not be sufficient to prevent non-skid tread buttons becoming brittle enough to break off. However, if Dr. Poulter drives the Cruiser to the Pole and parks there for several days, as he plans to do, or if a long stop is made anywhere along the way when temperatures are too low, all four wheels will be jacked up. When ready to proceed, the tires will be covered with curtains and warmed up above the brittle point, the front ones by engine exhaust and the rears by blow torches.

To permit adjusting tire pressure for altitude or temperature, or to compensate for a small leak, it is proposed to install apparatus for regulation of tire pressure from the control room. This scheme is not as difficult as it sounds.

Since the tires make only 200 revolutions per mile, double reduction bevel gearing is necessary between each wheel and its motor.

A tire and its rim weigh 3100 pounds. In case one has to be changed there is provision for attaching a derrick at four points in the roof of the Cruiser adjacent to the tire.

The Cruiser is equipped with two powerful headlamps for driving through the long Antarctic night. To mark the trail, reflector units, visible in all directions for 15 miles, will be used.

A two-way radio unit will keep the crew in touch with the other groups in the expedition.

The Snow Cruiser was built in three months by the Research Foundation of Armour Institute of Technology which owns the ship. Its construction, costing $150,000, was financed by friends of the Institute and 80 manufacturers. Principal units in its makeup include a special alloy steel body built by the Pullman company, two six-cylinder 672 cubic inch, 150 hp Cummings Diesel engines, General Electric generators and. motors, and controls for steering, braking and jacking, by Hydraulic Controls Inc. The airplane is a specially designed Beechcraft with a 350 hp Wright Whirlwind engine.
